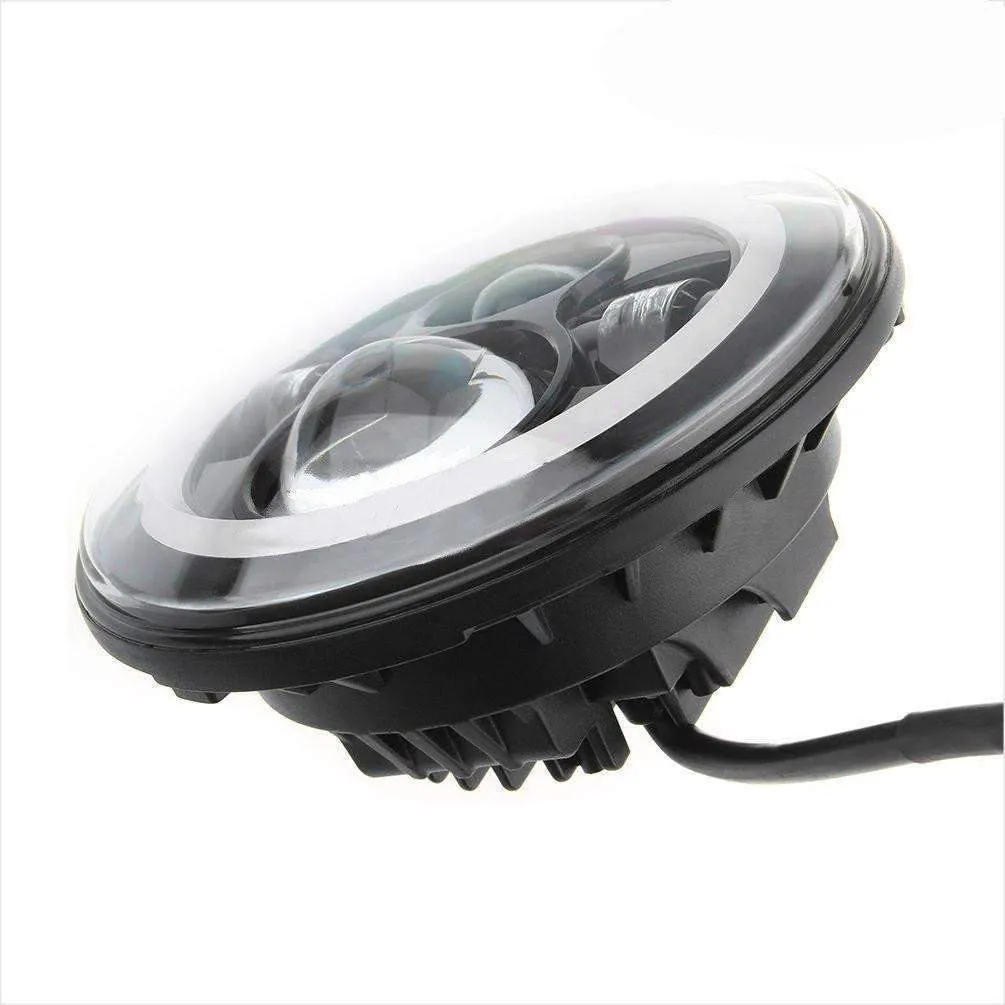

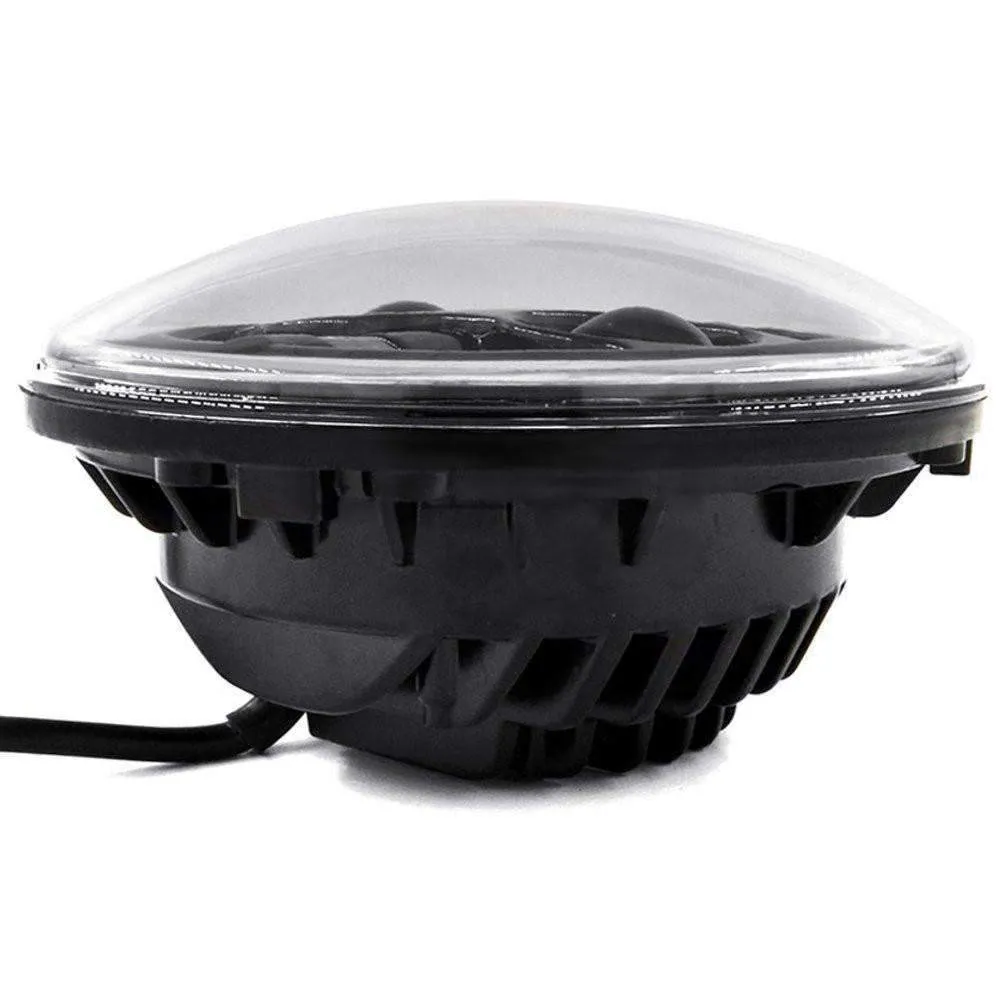

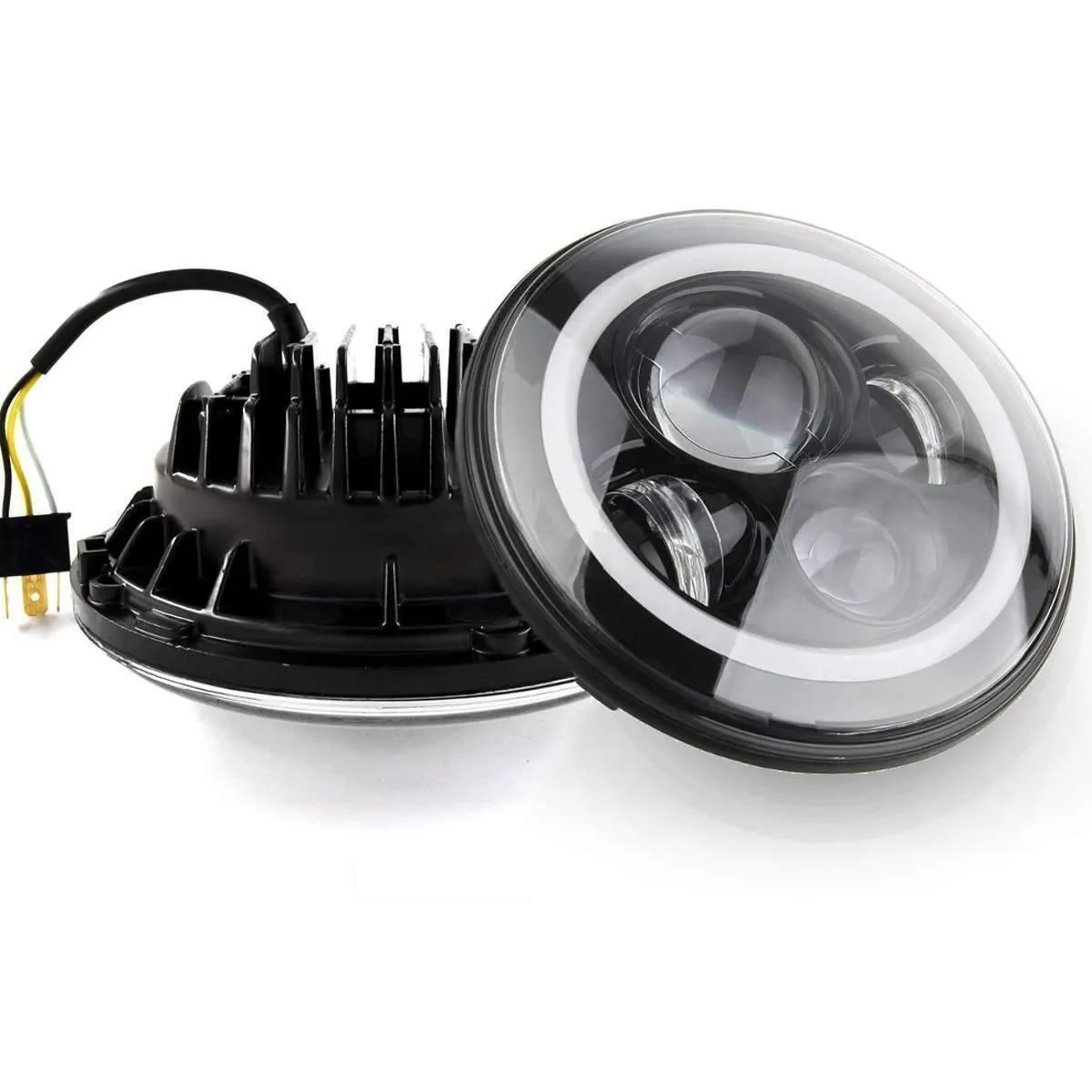

Name: Eagle Lights 7" LED Headlight Kit for Jeeps with White LED Halo Rings - Double Pack
SKU: 326851

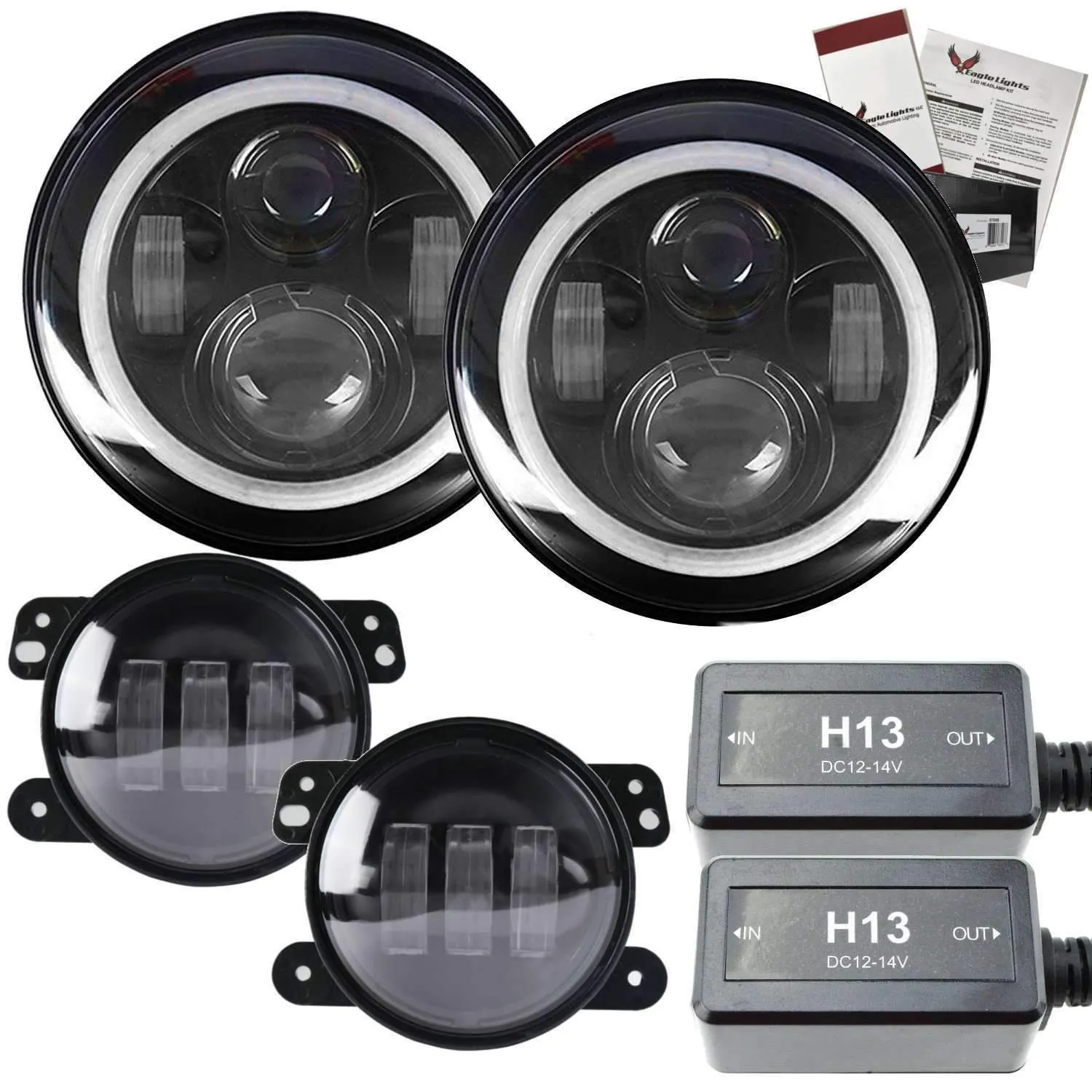

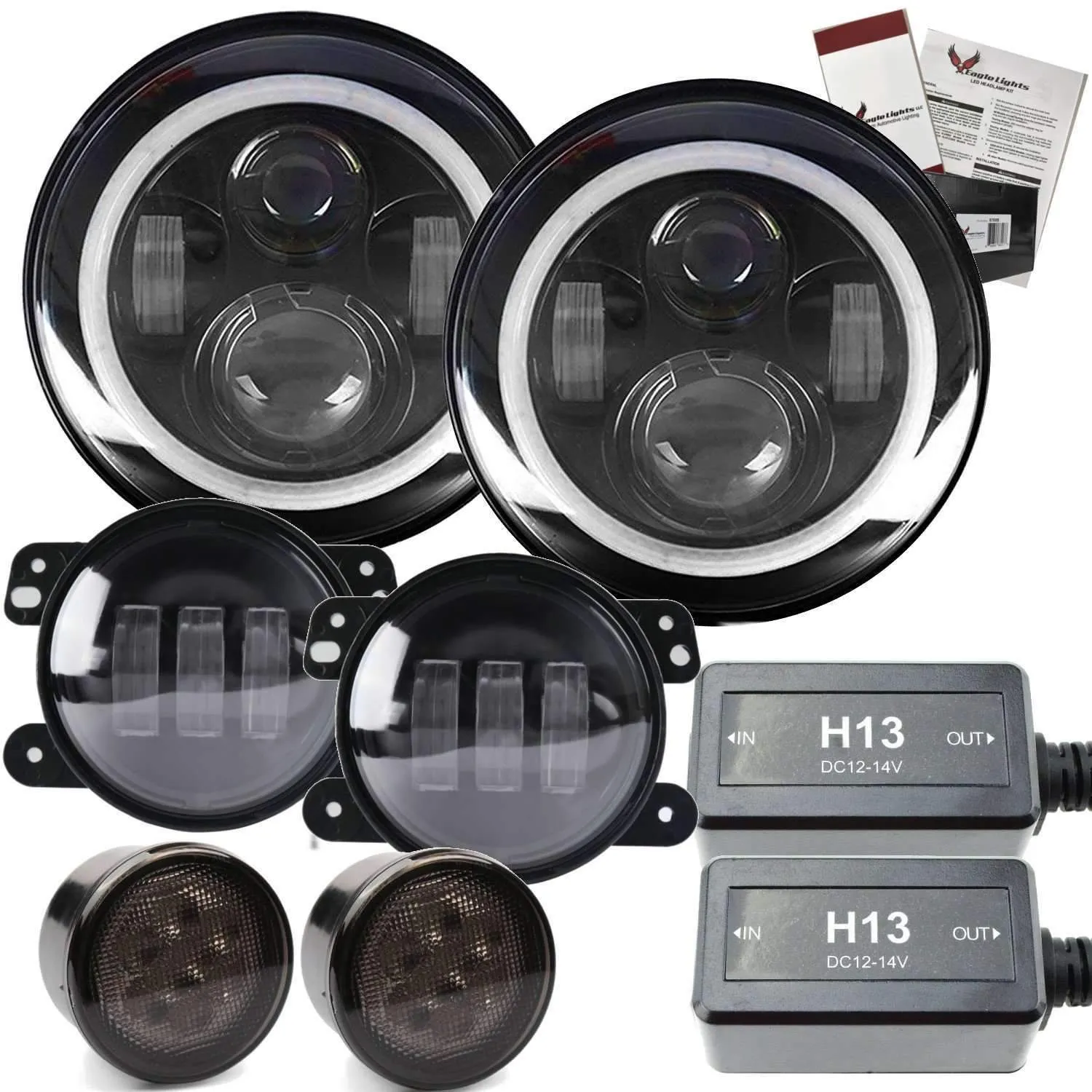

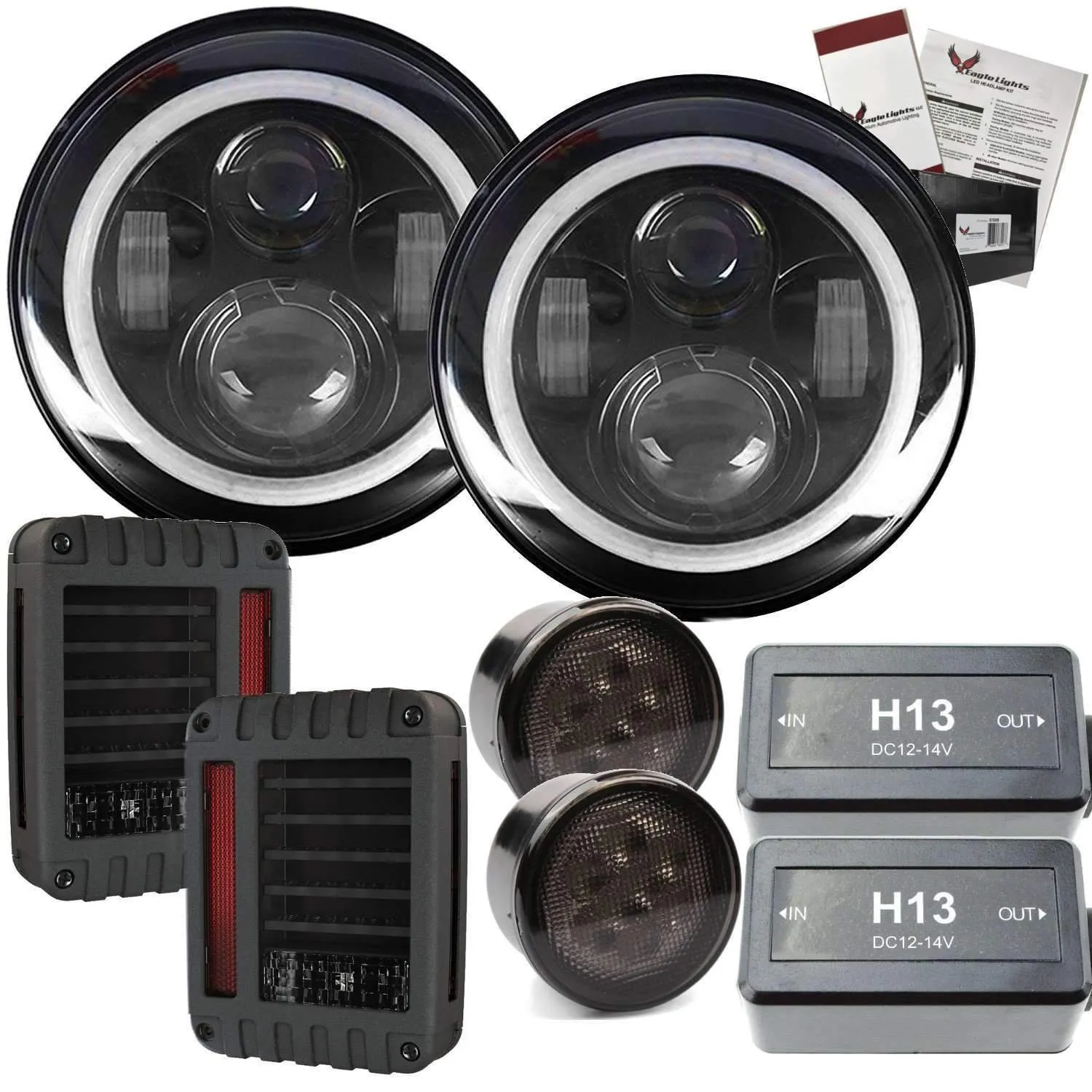

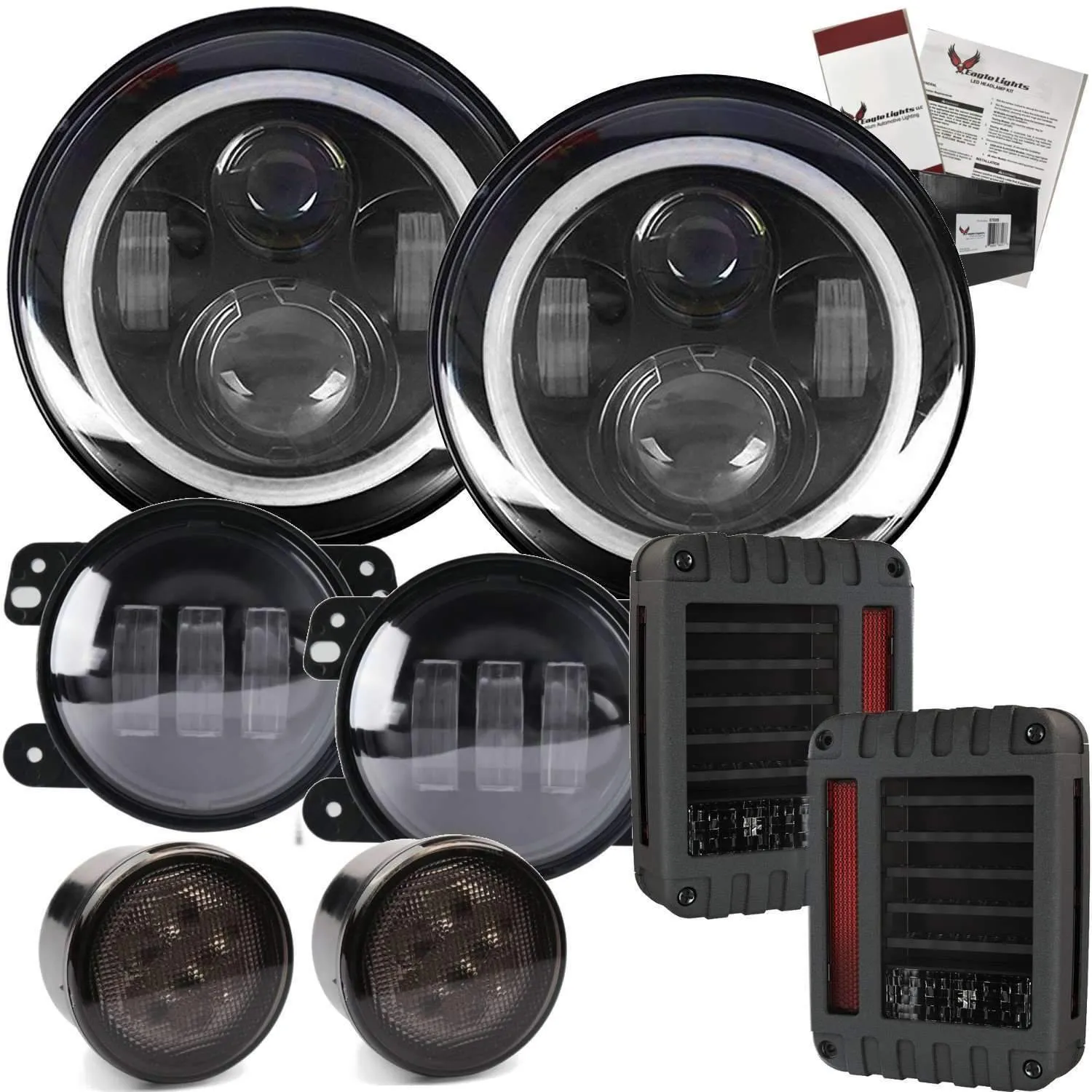

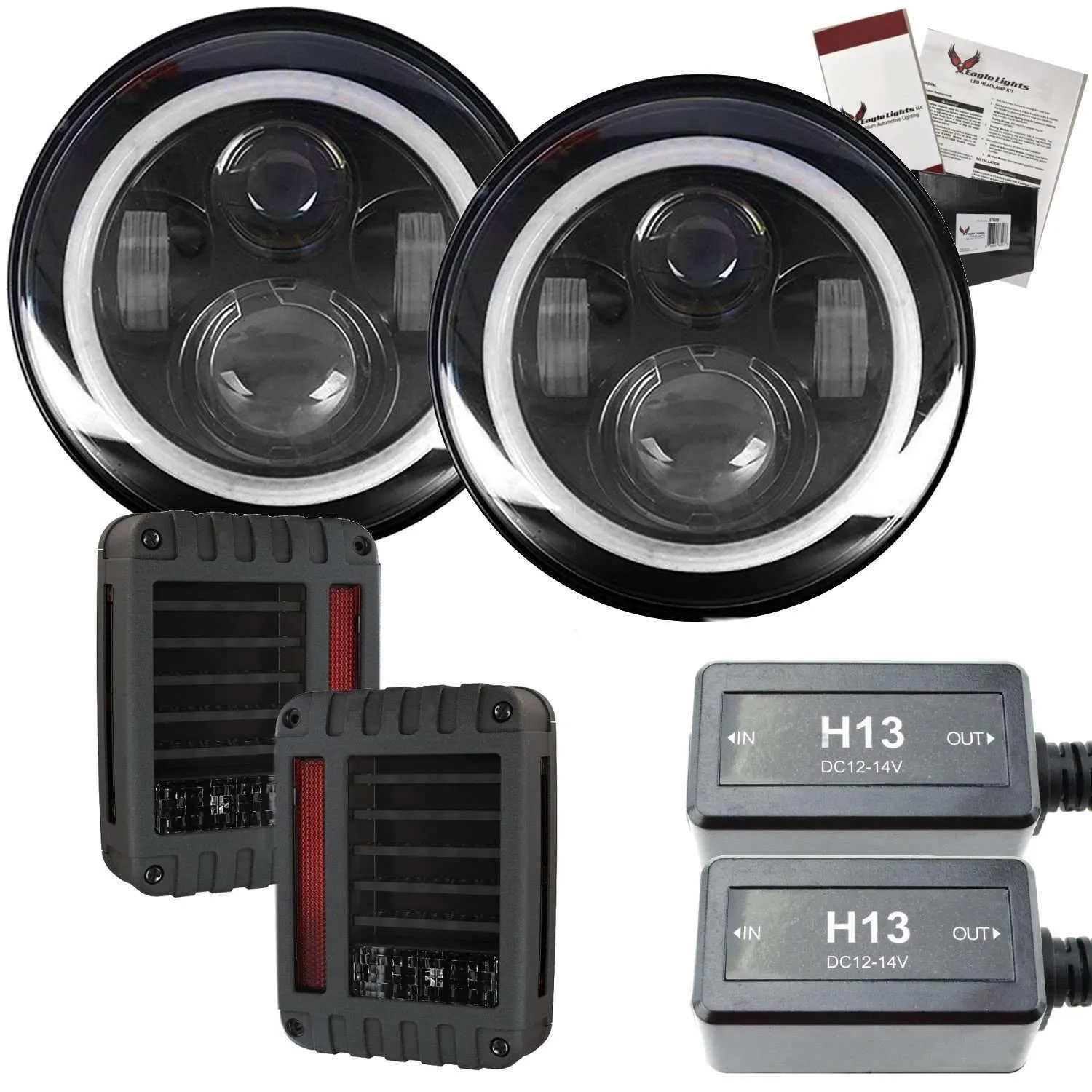

Spice up your Jeep with an Eagle Lights 7" LED Headlight with Halo ring. Comes with standard high beam and low beam function along with the LED halo ring. Plug and play replacement on most Jeep models. The kit comes with the needed anti-flicker harnesses and H4-H13 wiring adapters. No additional adapters are need for installation.

9100 Series Features:

UV-resistant polycarbonate lens

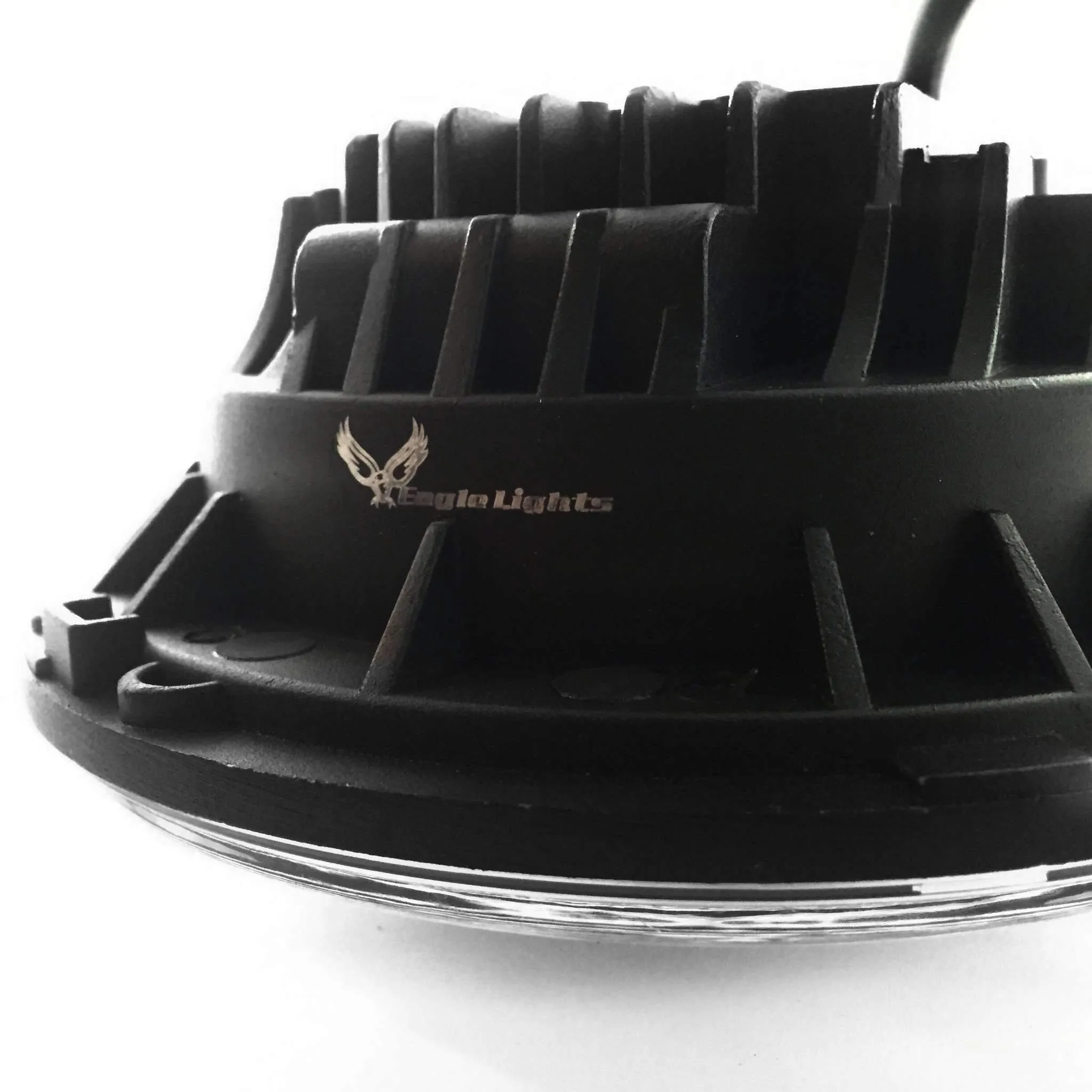

Die-cast aluminum housing provides maximum protection
Plug and play, no LED canbus needed
LED Halo Ring functionality
High Beam and Low Beam functionality.
Bulb Lifespan of 30000 Hours
3X Brighter than Halogen Bulbs and equivalent to 35W HID
SAE / DOT Compliance assures accurate beam pattern distribution & precise fitment
EAGLE LIGHTS LIFETIME WARRANTY - Our LED headlights are designed to outlast your bike! But should something go wrong, you are covered by the Eagle Lights Lifetime Manufacturer Warranty. The best warranty in the business! No hassle returns and no hassle warranty replacement.

9100B Technical Specifications:

Description 12V DOT/ECE LED High Beam Headlight with Colored Bezel
Shape Circle
Outer Lens Material Hardcoated Polycarbonate
Outer Lens Color Clear
Housing Material Die-Cast Aluminum
Housing Color Black
Mounting Type Low-Profile Panel Mount
Retrofits PAR56 Lights / 7" LED Headlights
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F)
Product Weight 2.47 (lbs) / 0.98 (kgs)
Lumen Output 1350 LM (Low Beam) 1770 LM (High Beam)

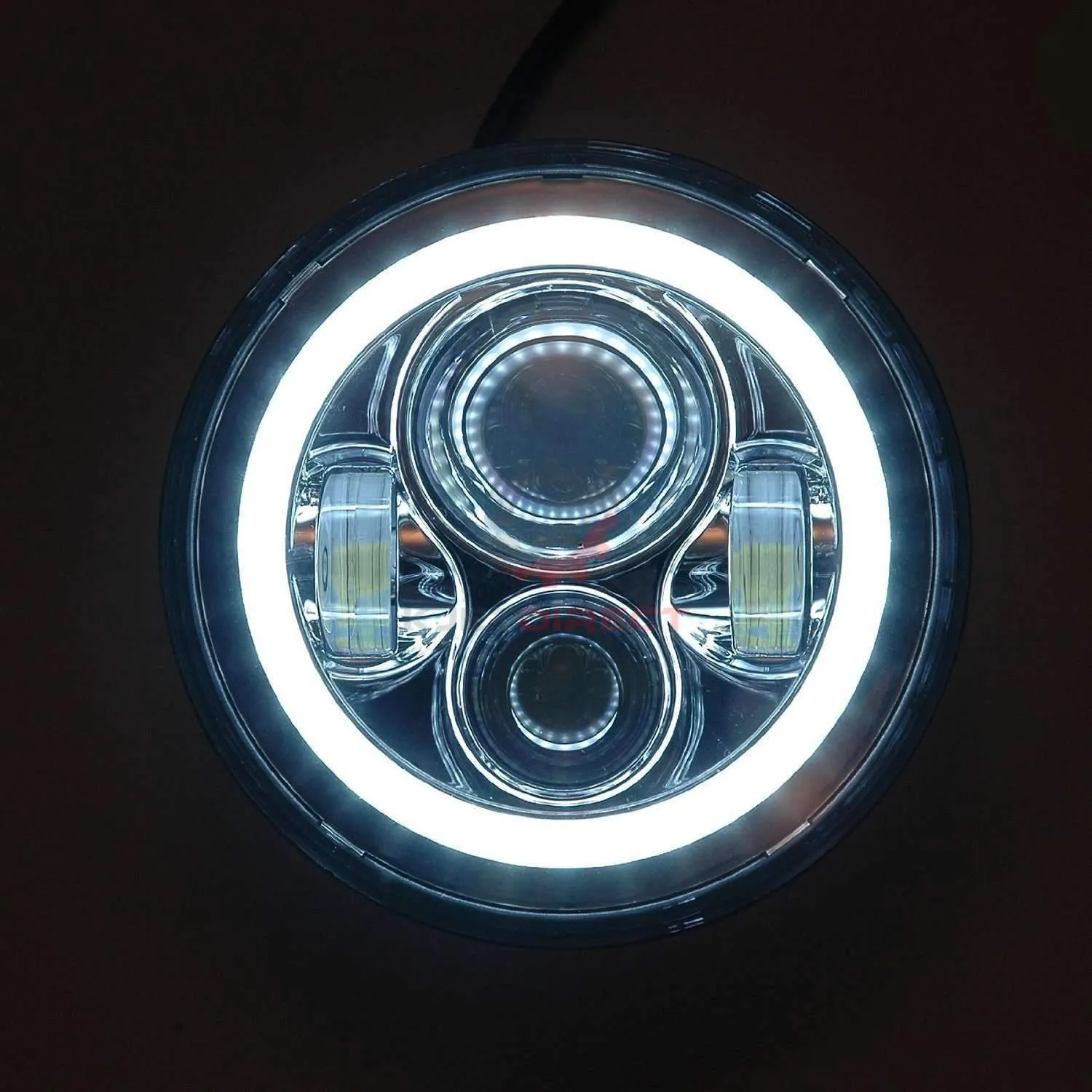

Halo Ring Function:
The halos are designed to stay lit whenever the vehicle is running to act as Daytime Running Lights (DRL’s). We leave the halo ring positive lead unwired. This red halo lead can be wired into your current DRL (Daytime Running Lights) lights to function with your other DRL lights. Splice the red positive wire into your current turn signal DRL and you are ready to roll. The stock Jeep turn signal harness has two white wires and one black wire. The DRL wire is the center white wire. The halo ring of your new headlights will now function as a DRL light.

If you prefer a plug and play installation with no wiring, we can have the halo ring come on with the low beam lights. Please contact us prior to ordering.
